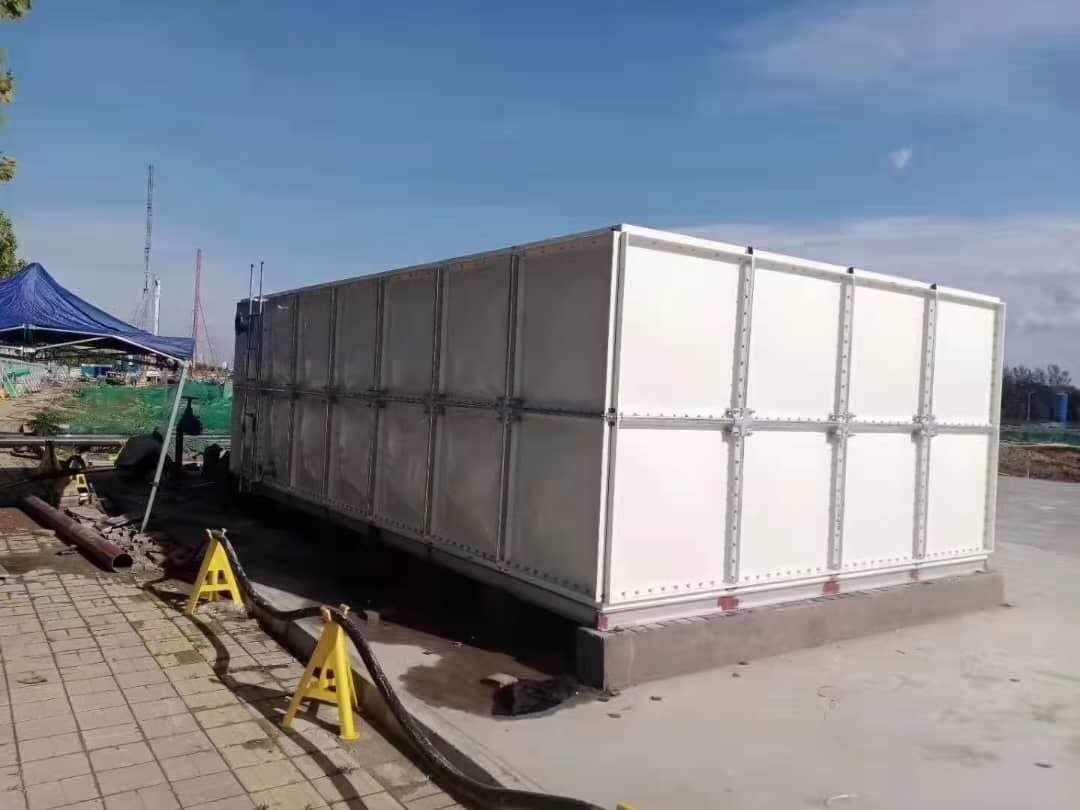

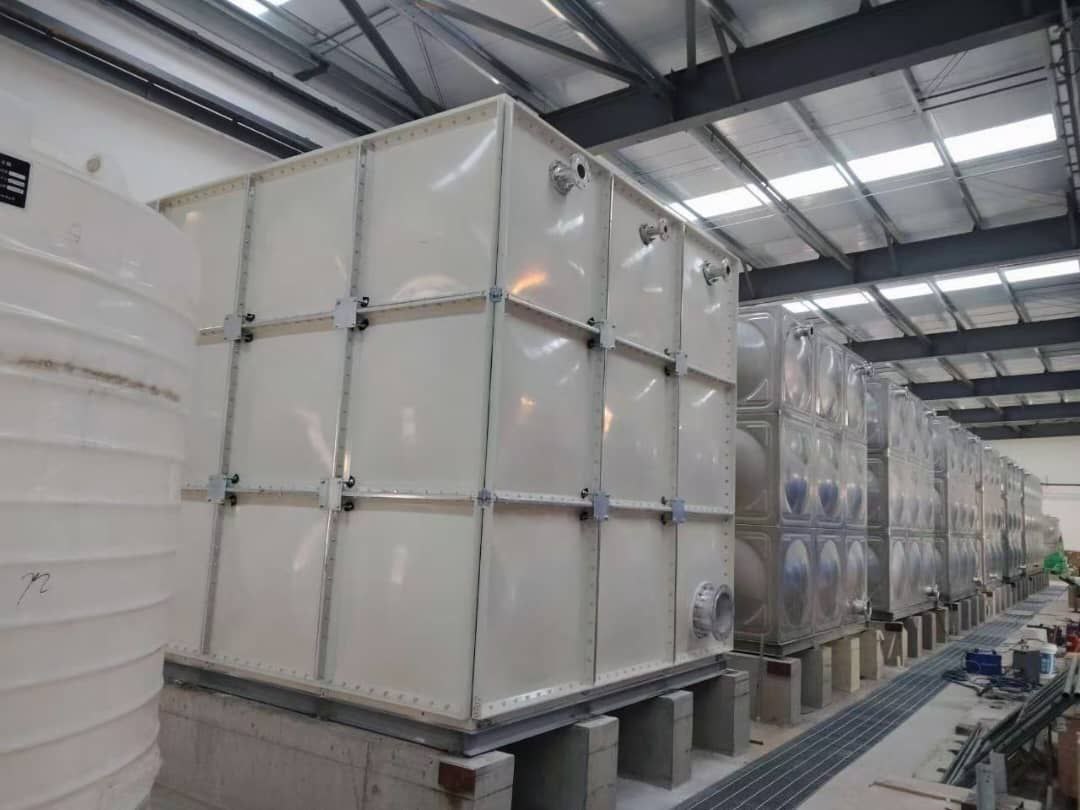

GRP Water Tank Overview
GRP is the abbreviation of Glassfiber Reinforced Plastic. GRP water tank can also be called FRP, SMC (Fiberglass Reinforced Plastics) water tank. GRP is mainly composed by fiberglass and resin which will directly determine the quality of GRP Water Tank.
For GRP panels, it is made from SMC (Sheet Molding Composite) by hydraulic hot pressed under temperature (150°C) and pressure conditions to maintain the best endurance. The major advantage is light weight, anti-rusted, non-leakage, long durable time and easy to clean. Sealing materials, metal structure and piping system to onsite assemble together. We can assemble water tanks with 0.125m³~125,00m³ according to your need.
Key Advantages
High Strength & Light Weight
Combines durability with easy handling and installation.
No Rust & Strong Corrosion Resistance
Excellent performance against corrosion and rust.
Food Grade Material
Healthy and safe for storing drinking water.
Flexible Design & Free Combination
Customizable to meet specific requirements.
Reasonable Price & Considerate Service
Cost-effective solution with excellent customer support.
Easy to Install & Maintain
Convenient installation process and low maintenance.
Easy to Transport & UV Resistance
Lightweight for transport and resistant to UV degradation.
Health and Environmental Protection
Will not grow bacteria, ensuring water quality.
Large Capacity
Available in sizes from 0.125m³ to 125.00m³.

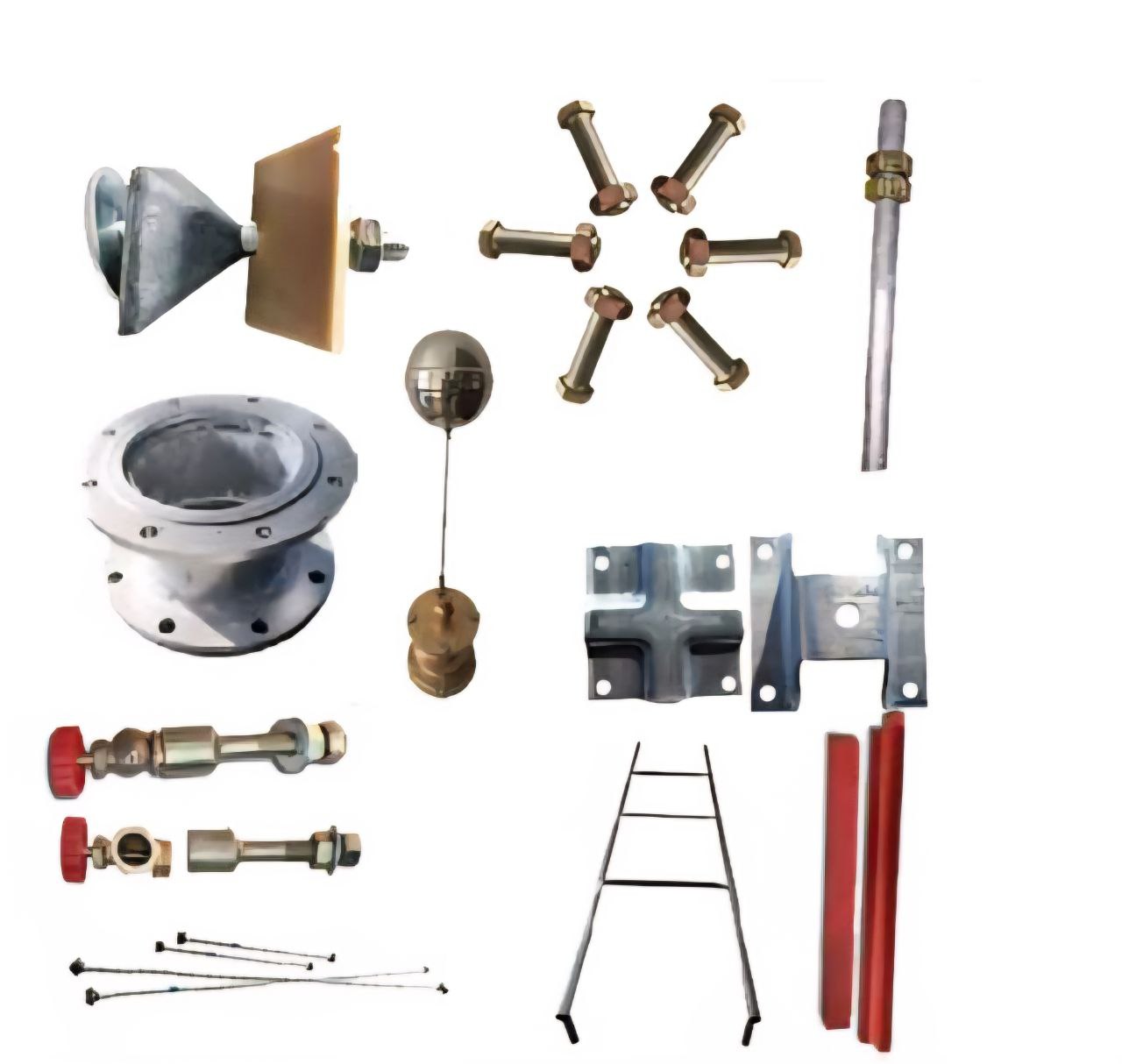

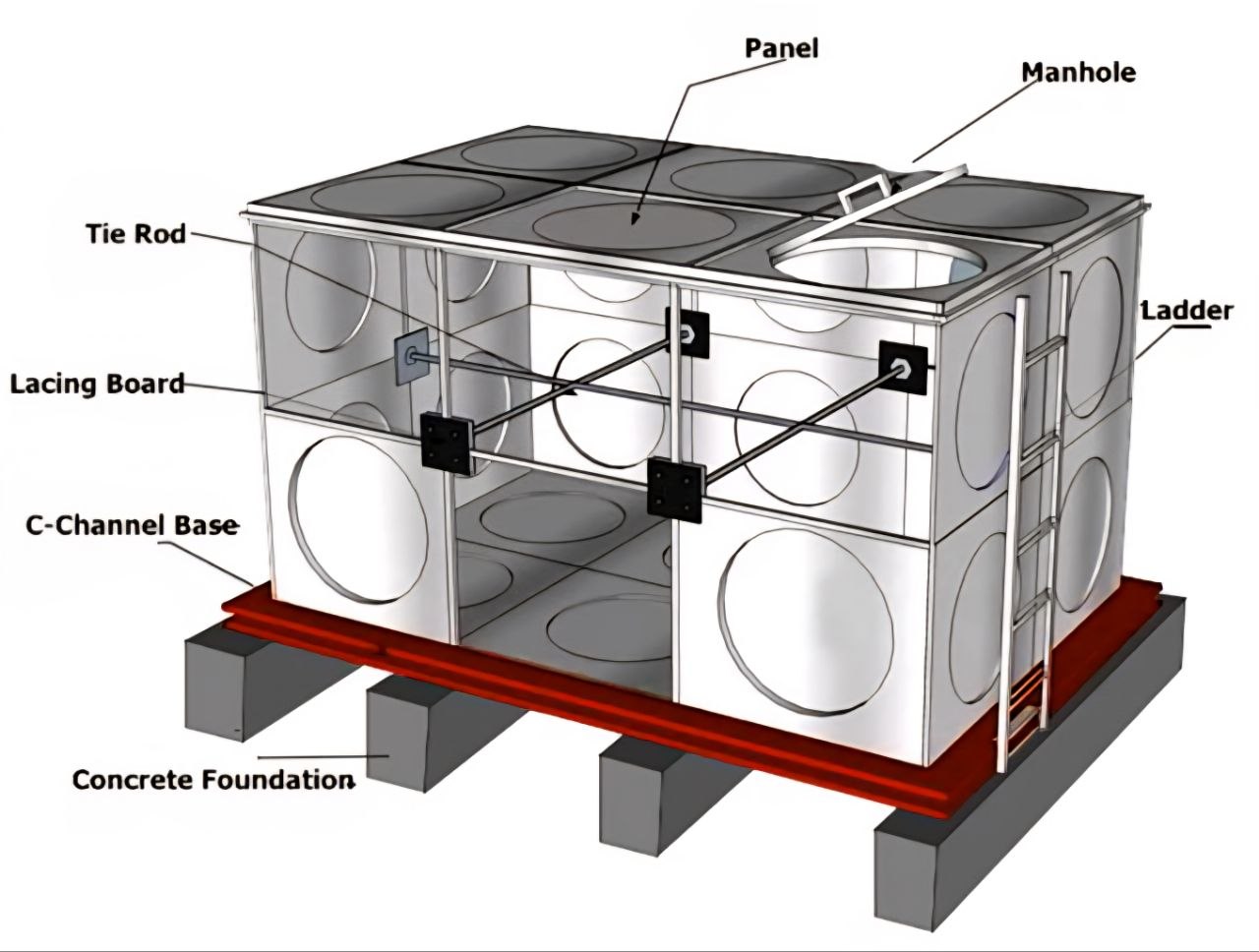

GRP Tank Components
We can provide internal parts and external parts with different kinds of materials: stainless steel parts, hot galvanized steel parts, and zinc material parts. Our clients can have multiple choices for their own specific needs.
1. Panels
- Bottom panel
- Wall panel
- Roof panel
- Manhole
2. Internal Parts
- Internal ladder
- Tiepiece rod
- Stoppoint
- Flanges and rubber
3. External Parts
- External ladder
- Angle iron
- Tiepiece board
- Bolts and nuts
4. U-Steel Base
Surface treatment can be painted or hot dipped galvanized or stainless steel.
Applications
The GRP water tanks are widely used in:

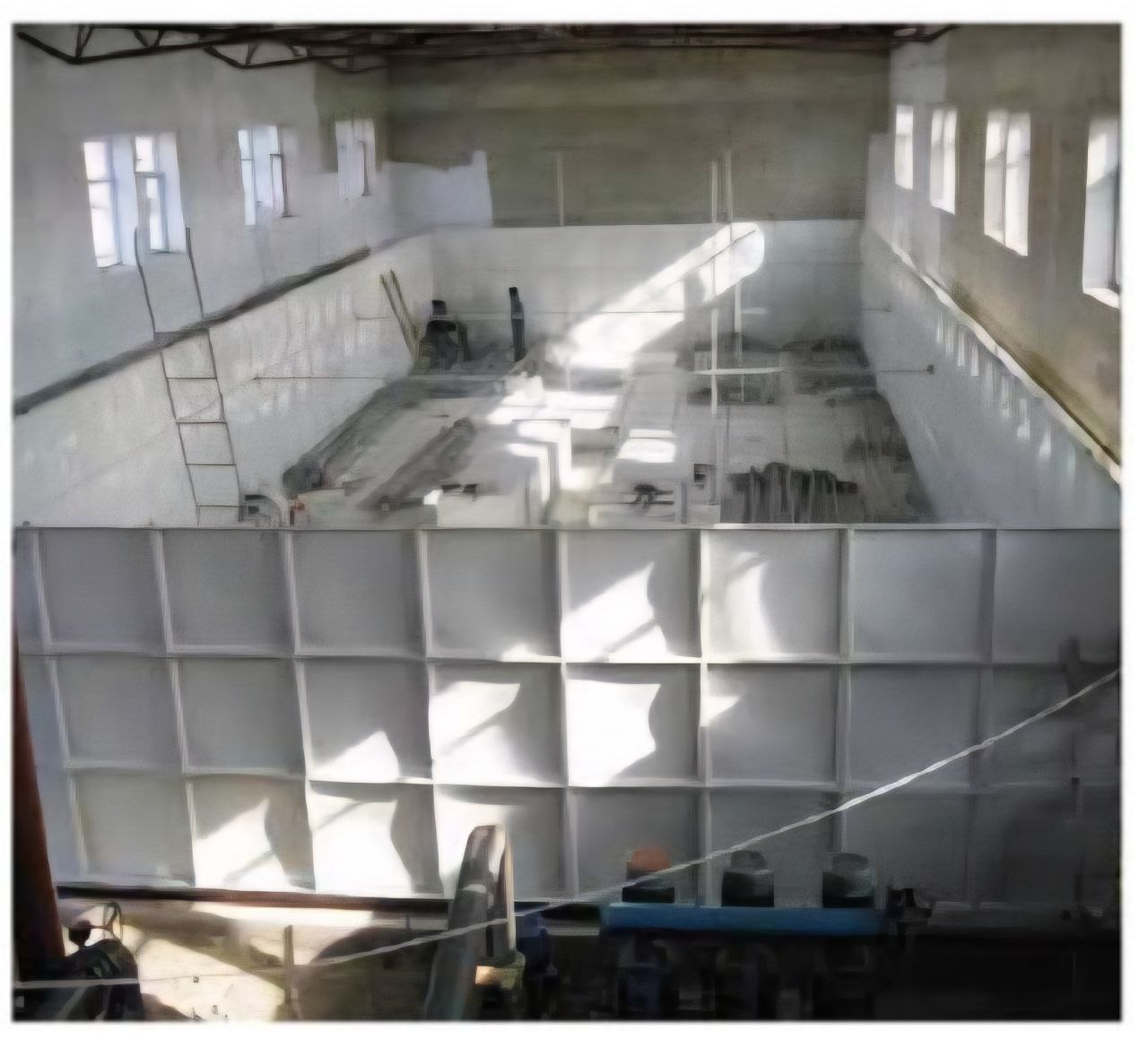

Installation
For installation, we can provide installation guide: installation video or installation assistance on site by our engineers.
If parts are damaged within the quality insurance period because of quality fault, we will change the damaged parts free of charge.
Technical Specifications
Product Parameters
| Product Name | GRP water tank, FRP water tank, SMC water tank |
| Panel | 2x1m 1.5x1m 1x1m 1x0.5m 0.5x0.5m |
| Panel Thickness | 6-20mm |
| Raw Material | FRP/SMC/GRP |
| Product Color | White, Blue |
| Tank Volume | 0.125-5,000 CMB |
| Tank Height | 1-5m (Max) |
| Tensile Strength | ≥70MPa |
| Flexural Strength | ≥100MPa |
| Bending Modulus | ≥7.0GPa |
| Barcol Hardness | ≥60MPa |
| Water Absorption | ≤1.0% |
| Fiberglass Content | ≥25% |
| Light Transmission | Nil |
| Outdoor Weathering | Stabilized |
| Toxicity | Nil |
| Micro Biological Growth | Nil |
Panel Thickness Specifications
| Water Tank Height | Bottom | Side 1 | Side 2 | Side 3 | Side 4 | Side 5 | Top |
|---|---|---|---|---|---|---|---|
| 1000mm | 10 | 10 | / | / | / | / | 5 |
| 1500mm | 10 | 10 | 8 | / | / | / | 5 |
| 2000mm | 12 | 10 | 8 | / | / | / | 5 |
| 2500mm | 12 | 12 | 10 | 8 | / | / | 5 |
| 3000mm | 14 | 14 | 12 | 8 | / | / | 5 |
| 3500mm | 16 | 14 | 12 | 10 | 8 | / | 5 |
| 4000mm | 18 | 18 | 14 | 12 | 10 | / | 5 |
| 4500mm | 20 | 18 | 16 | 14 | 12 | 10 | 5 |
| 5000mm | 20 | 20 | 16 | 14 | 12 | 10 | 5 |
